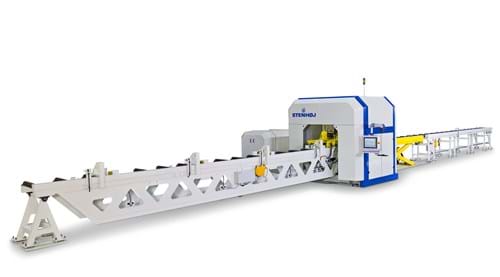

Truck Chassis Beam Bending Machine

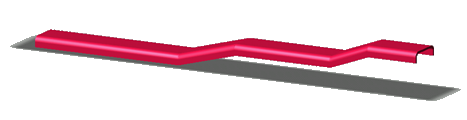

Truck Chassis Beam Bending Machine

STENHØJ bending machines are equipped with a flexible bending tool that eliminates the need for tool-change as well as an intelligent self-correcting 'Learning by Doing ' system that enables first-hit-bend production.

The integration of advanced technology provides a safe, flexible and fully automatic production with no need for correction during bending of the truck chassis beam.

Catalogue Send request

Product
Features
Specifications
Examples
Catalogue

Need help?

Unique Features

No folds in the flanges
No deviations in flange angle
Accurate positioning of the bending lines
Precise bends - irrespective of steel qualit
Optimum parallelism
No after treatment of the bending points
Automatic compensation for spring back
Offsetting of painted beams (subject to type of paint)
Twist (torsion) & bow compensation (option)

Specifications

Flexible Tooling

STENHØJ Universal 'Floating Tool' Concept
The STENHØJ bending tool will bend any chassis beam used in the heavy truck industry. The bending tool is flexible and will automatically adapt to any beam dimension without tool change or manual interference. A diversified concept of various design in the tooling can be changed individually in the quick tool change device.

Stenhoej bending machine - Universal 'Floating Tool'

Universal 'Floating Tool'

with automatic adaption to beam profiles
for straight or contour beams with variable sections
multi choice for number of bends
high tensile steel or heat treated beams
featuring special custom designs
polished for handling painted beams

Flexibility in Design and Production

automatic tool setting without tool chang
LEAN production with traceability ISO e.g.
no additional cost for tooling
works automatically with program storage

Advanced software

'Learning by Doing' System
The Truck Chassis Offsetting Line is equipped with an intelligent 'Learning by Doing' control and correction system that controls and auto-corrects bending angles in both directions (+/-) if required.

Intelligent Machine Learning
The intelligent “Learning-by-doing” system works fully automatically for initial as well as for subsequent bends. Each bend, for each beam type, is being processed entirely individually by the system, and machine learning data is stored individually.

Full Automatic Control and Correction
For each bend, the system will measure the starting position and the achieved bending angle. If the angle lies within the desired tolerance, the machine will proceed to next step.

If the angle is not within tolerance, the computer will automatically calculate an appropriate correction to reach desired tolerance by using the factory pre-installed correction program. The calculation program will take all variables of the beam into consideration, such as spring-back, thickness etc.

The correction program will be running constantly throughout the entire bending process to ensure optimal accuracy and repeatability.

Customised Options

As long-time marked leading manufacturer of heavy Truck Chassis Bending Machines, STENHØJ has served customers worldwide with numerous customised options for their specific bending purpose.

These include:

Customized special tooling with “quick change” device
Short distance bends
Twist compensation tooling and software
Support roller for long distance 1st bend
Overbend function
Measuring tool-box
Eccentric centring unit for bending of “contour” variable section beams
Bending of re-enforcement liners in one and same operation
Support roller conveyor for member > 14.000 mm
Automatic check for calibration of measuring system
Positioning unit for automatic handling by e.g., cranes
On-site commission and training of operators and service personnel.

STENHØJ High Precision Feeding & Positioning System

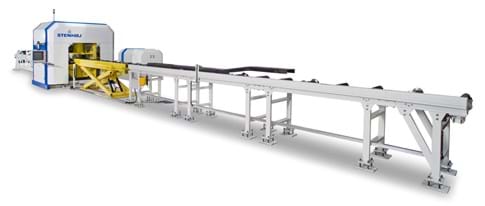

STENHØJ Outlet and Buffer Conveyor System
